Skid Steer Weights by Brand and Safe Trailering Tips
See operating weights for Bobcat, Cat, John Deere, Kubota, Case, New Holland, JCB, and Gehl skid steers, plus practical trailering tips for safe moves.
Skid steer weight varies by brand and model. Operating weights in the models below run from compact units in the 2,447 kg (5,395 lbs) range up to heavy duty machines at 4,540 kg (10,000 lbs). Use the comparison table to see typical weights by brand, then follow the transport pointers to pick the right trailer and move your skid steer loader safely.
Operating weight and transport basics
Operating weight is the best single number to plan a haul. It reflects the machine with standard equipment and fluids. For trailering, remember that attachments, extra fuel, and jobsite gear add to your total load. Always add those items to the operating weight before you check tow-vehicle and trailer ratings.
Skid steer weights by brand table
The table lists operating weight first, your primary transport number, along with horsepower and rated operating capacity at 50% tipping, a common capacity rating. Many manufacturers also publish a 35% rating; where provided, it’s shown for context.
| Brand & model | Type | Lift design | Horsepower | ROC (35% tip) | ROC (50% tip) | Operating weight |
|---|---|---|---|---|---|---|
| Bobcat S595 | Skid steer | Vertical | 55.2 kW (74.0 HP) | 748.4 kg (1650 lbs) | 997.9 kg (2200 lbs) | 3081.3 kg (6793 lbs) |
| Bobcat S750 | Skid steer | Vertical | 63.4 kW (85.0 HP) | 1102.2 kg (2430 lbs) | 1451.5 kg (3200 lbs) | 4033.8 kg (8893 lbs) |
| Bobcat S650 | Skid steer | Vertical | 55.4 kW (74.3 HP) | , | 1220.2 kg (2690 lbs) | 3777.1 kg (8327 lbs) |
| Caterpillar 246D | Skid steer | Radial | 55.4 kW (74.3 HP) | 725.7 kg (1600 lbs) | 975.2 kg (2150 lbs) | 3367.5 kg (7424 lbs) |
| Caterpillar 242D | Skid steer | Vertical | 55.4 kW (74.3 HP) | 725.7 kg (1600 lbs) | 975.2 kg (2150 lbs) | 3367.5 kg (7424 lbs) |
| Caterpillar 262B | Skid steer | Vertical | 61.1 kW (82.0 HP) | , | 1224.7 kg (2700 lbs) | 3565.0 kg (7859 lbs) |
| John Deere 328E | Skid steer | Vertical | 64.1 kW (86.0 HP) | 884.5 kg (1950 lbs) | 1270.1 kg (2800 lbs) | 3978.0 kg (8770 lbs) |
| John Deere 8875 | Skid steer | Vertical | 48.0 kW (64.4 HP) | 793.8 kg (1750 lbs) | 1065.9 kg (2350 lbs) | 3175.4 kg (7000 lbs) |
| John Deere 332G | Skid steer | Vertical | 74.6 kW (100.0 HP) | 1293 kg (2850 lbs) | 1701 kg (3750 lbs) | 4540 kg (10000 lbs) |
| Kubota SSV75 | Skid steer | Vertical | 55.4 kW (74.3 HP) | 852.8 kg (1880 lbs) | 1220.2 kg (2690 lbs) | 3819.8 kg (8421 lbs) |
| Kubota SSV65 | Skid steer | Vertical | 47.7 kW (64.0 HP) | 612.3 kg (1350 lbs) | 884.5 kg (1950 lbs) | 3197.8 kg (7050 lbs) |
| Kubota SSV65-2 | Compact track loader | Vertical | 51.0 kW (68.4 HP) | 666.8 kg (1470 lbs) | 952.5 kg (2100 lbs) | 3651.4 kg (8050 lbs) |
| Case 90XT | Skid steer | Radial | 63.4 kW (85.0 HP) | 771.1 kg (1700 lbs) | 1111.3 kg (2450 lbs) | 4059.7 kg (8950 lbs) |
| Case SR160 | Skid steer | Radial | 44.7 kW (60.0 HP) | 499.0 kg (1100 lbs) | 725.7 kg (1600 lbs) | 2499.3 kg (5510 lbs) |
| Case 85XT | Skid steer | Radial | 59.7 kW (80.0 HP) | 771.1 kg (1700 lbs) | 1088.6 kg (2400 lbs) | 3651.4 kg (8050 lbs) |
| New Holland LX565 | Skid steer | Vertical | 31.7 kW (42.5 HP) | 499.0 kg (1100 lbs) | 768.8 kg (1695 lbs) | 2447.1 kg (5395 lbs) |
| New Holland LS180 | Skid steer | Radial | 50.0 kW (67.0 HP) | 793.8 kg (1750 lbs) | 997.9 kg (2200 lbs) | 2510.2 kg (5534 lbs) |
| New Holland LX665 | Skid steer | Vertical | 38.8 kW (52.0 HP) | 553.4 kg (1220 lbs) | 773.4 kg (1705 lbs) | 2449.4 kg (5400 lbs) |
| JCB 215 | Skid steer | Vertical | 55.2 kW (74.0 HP) | 703.1 kg (1550 lbs) | 997.9 kg (2200 lbs) | 3285.5 kg (7250 lbs) |
| JCB 210 | Skid steer | Radial | 55.2 kW (74.0 HP) | 680.4 kg (1500 lbs) | 952.5 kg (2100 lbs) | 4127.7 kg (6900 lbs) |
| JCB 280 | Skid steer | Vertical | 55.2 kW (74.0 HP) | 1270.5 kg (2800 lbs) | 1950.4 kg (4300 lbs) | 3795.7 kg (8368 lbs) |
| Gehl 6640 | Skid steer | Vertical | 61.1 kW (82.0 HP) | 816.5 kg (1800 lbs) | 1088.6 kg (2400 lbs) | 3538.0 kg (7800 lbs) |
| Gehl 5635 SX | Skid steer | Vertical | 44.7 kW (60.0 HP) | , | 861.8 kg (1900 lbs) | 3252.3 kg (7170 lbs) |
| Gehl 4840E | Skid steer | Vertical | 45.0 kW (61.2 HP) | 567.0 kg (1250 lbs) | 771.1 kg (1700 lbs) | 2939.3 kg (6480 lbs) |
Quick takeaways from the table
- Compact machines like the New Holland LX565 and LX665 are among the lightest in the list.
- Heavier, high-capacity units such as the John Deere 332G push operating weight to 4,540 kg (10,000 lbs).
- Comparing similar models across brands shows how close many mid-frame loaders are in weight; for example, a Bobcat S650, Cat 262B, and Gehl 6640 all land in the 3,538 to 3,777 kg (7,800, 8,327 lbs) zone based on the figures above.
Wheel and track weight implications
Tracked loaders generally weigh more than wheeled counterparts with similar power. For example, the Kubota SSV65 skid steer lists 3197.8 kg (7050 lbs), while the Kubota SSV65-2 compact track loader is 3651.4 kg (8050 lbs). That extra mass affects trailer sizing, axle loads, and stopping distance. If you often work on soft ground but must haul frequently, factor this weight difference into your transport plan.
How to choose a trailer for your skid steer
Follow these steps to size a trailer and tow vehicle for a Bobcat skid steer, Cat skid steer, or any other brand in the table.
- Start with operating weight. Example: a Bobcat S595 is 3081.3 kg (6793 lbs); a John Deere 332G is 4540 kg (10000 lbs).
- Add attachments and extras. Buckets, forks, sweepers, hydraulic attachments, and job boxes add real weight. Remove unneeded tools for the haul when possible.
- Account for the trailer’s own weight. Your total towed load equals machine + attachments + trailer.
- Check ratings. Confirm your trailer’s payload capacity and your tow vehicle’s tow rating exceed the total towed load. Stay within all axle, hitch, and tire limits.
- Mind axle distribution. Load the machine so weight is balanced across the trailer axles and an appropriate tongue load is maintained for stable towing.

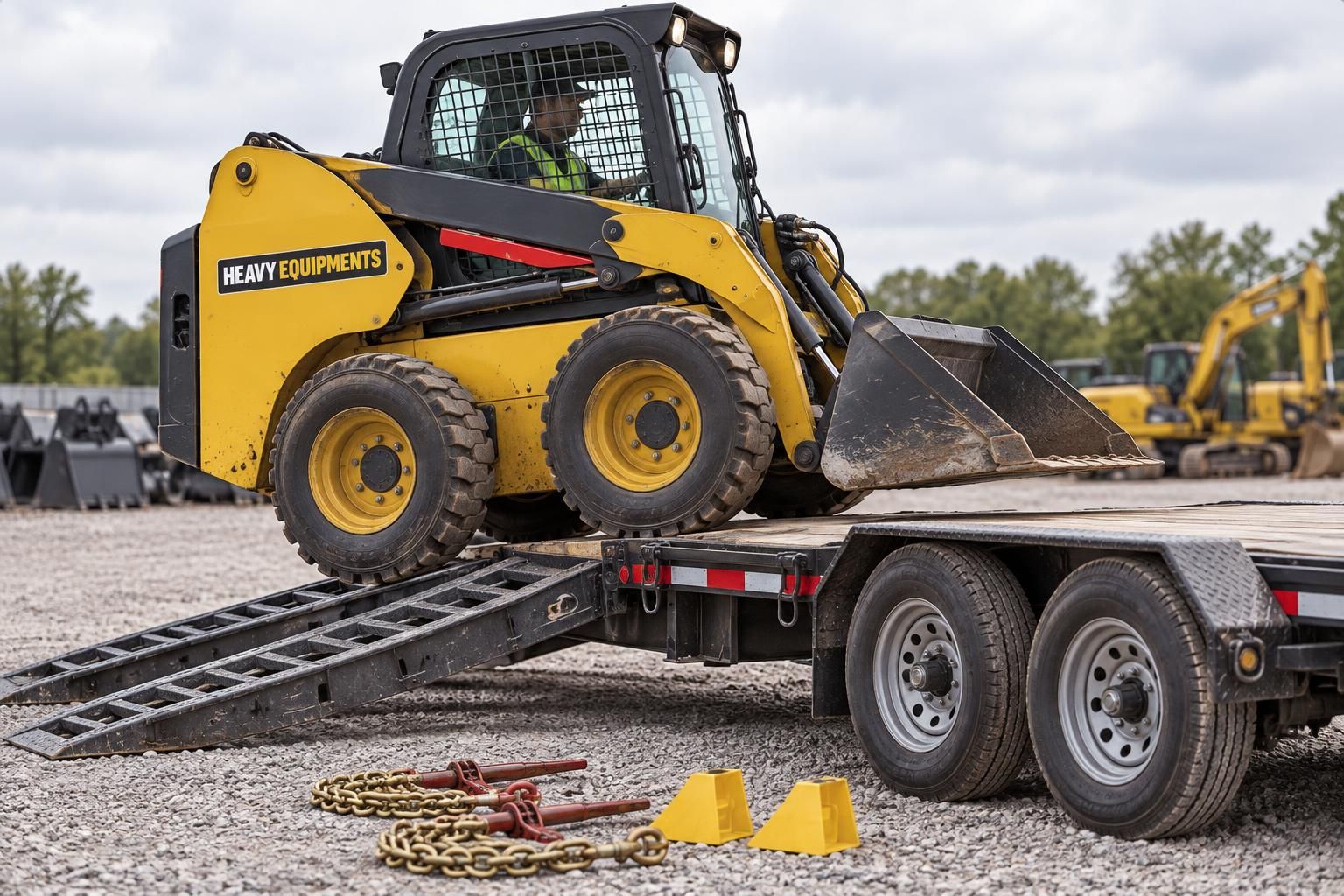

Loading and securement tips
- Use ramps and ground conditions that match the machine’s lift design and wheel/track setup. Radial-lift units can feel different on ramps than vertical-lift machines.
- Lower the attachment to the deck and set the parking brake before tying down.
- Use rated chains/straps and approved tie-down points on the frame. Protect hoses and cylinder rods from abrasion with edge guards.
- Chock wheels or block tracks as needed, then recheck binders after the first few miles.
- Verify transport height and width against local route restrictions, and follow your jurisdiction’s cargo securement rules.
