| Manufacturer | New Holland |
|---|---|
| Model | D150 |
| Type | Crawler Dozer |
| Horsepower | 140 HP (104,4 kW) |
| Operating Weight | 32760.7 lbs (14860,0 kg) |
| Engine Manufacturer | Cummins |
| Engine Model | 6BTAA5.9 |
| Net Power | 140 HP (104,4 kW) |
| Aspiration | Turbocharged with aftercooled |
| Number of Cylinders | 6 |
| Displacement | 360.1 cu in. (5901,0 cc) |
| Max Torque | 479.5 lbs/ft (650,1 N-m) |
| Power Measured RPM | 2200 RPM |
| Torque Measured RPM | 1300 RPM |
| Alternator Supplied Amp. | 70 A |
| Alternator | 70 A |
| Battery | 24 V |
| Transmission Type | Full powershift |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
| Max Speed Forward | 6.9 mph (11,1 km/h) |
| Max Speed Reverse | 8.1 mph (13,0 km/h) |
| Ground Pressure | 8.4 psi (0,6 bar) |
| Fuel Capacity | 71.4 gal (270,3 l) |
| Engine Oil Capacity | 3.8 gal (14,4 l) |
| Cooling System Capacity | 6.7 gal (25,4 l) |
| Hydraulic Capacity | 16.7 gal (63,2 l) |
| Final Drives Capacity | 6.9 gal (26,1 l) |
| Pump type | Variable Displacement Pump |
| Relief Valve Pressure | 2755.8 psi (190,0 bar) |
| Cab Height | 122,4 in. (310,9 cm) |
| Width Over Track | 94,8 in. (240,8 cm) |
| Length Overall | 187,2 in. (475,5 cm) |
| Length without Blade | 144,0 in. (365,8 cm) |
| Length of Track on Ground | 100,8 in. (256,0 cm) |
| Track Gauge | 75,6 in. (192,0 cm) |
| Ground Clearance | 15,6 in. (39,6 cm) |
| Ground Contact Area | 39525.1 cu in. (647701,8 cm³) |
| No of Carrier Rollers Per Side | 2 |
| No of Shoes Per Side | 43 |
| No of Track Rollers Per Side | 7 |
| Shoe Size | 19.7 in. (50,0 cm) |
| Weight (Operating) | 32760.7 lbs (14860,0 kg) |

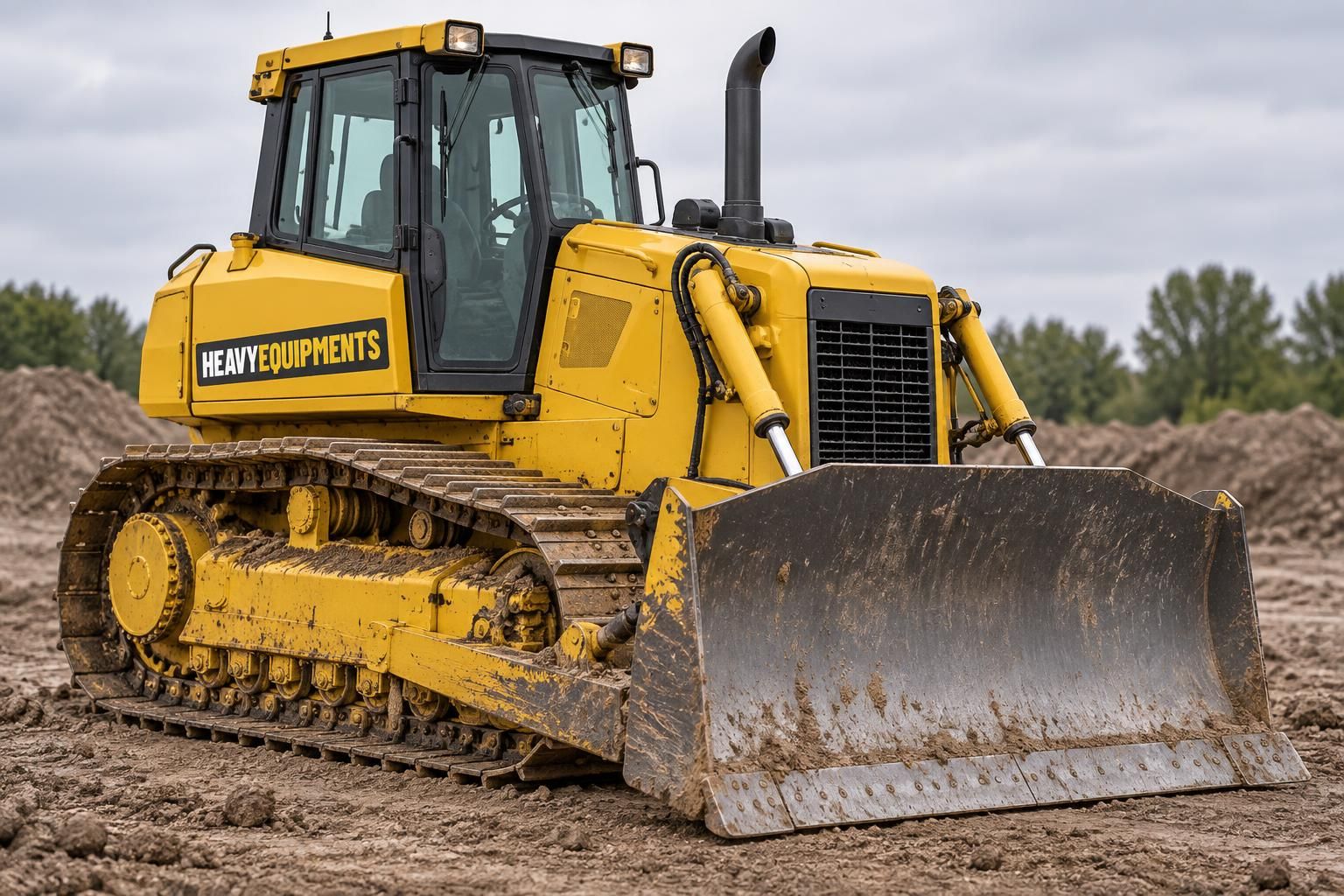

New Holland D150 Specs (Weight, Lift Capacity, Hp, Dimensions)
