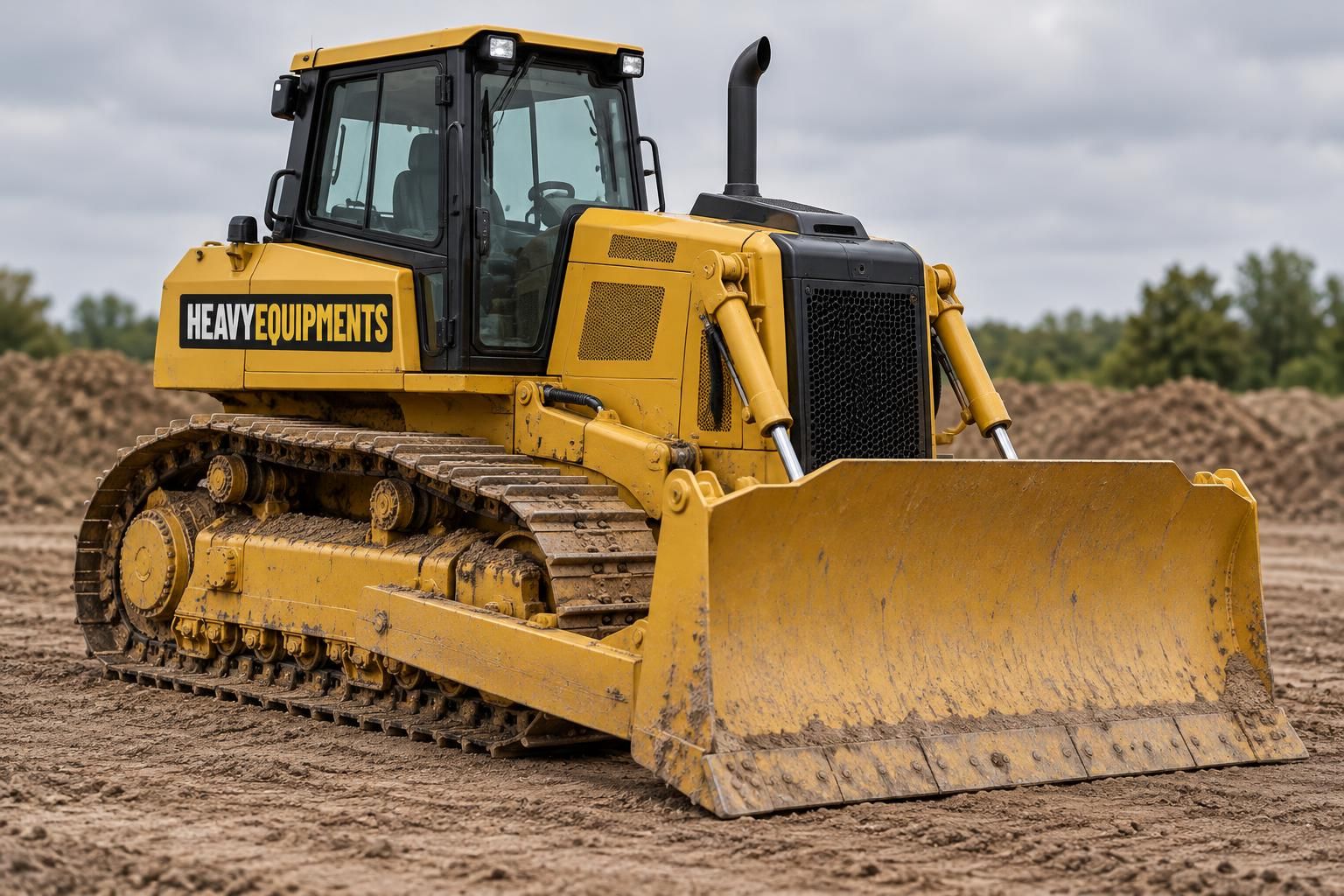

Caterpillar D4E Specs
Caterpillar D4E crawler dozer specifications: type Crawler Dozer, horsepower 55.9 kW, operating weight 8820.0 kg, engine manufacturer Caterpillar.
Manufacturer specifications
| Specification | Metric | Imperial |
|---|---|---|
| Type | Crawler Dozer | |
| Horsepower | 55.9 kW | 75 HP |
| Operating Weight | 8820.0 kg | 19444.8 lbs |
| Engine Manufacturer | Caterpillar | |
| Engine Model | 3304 | |
| Gross Power | 55.9 kW | 75 HP |
| Aspiration | Naturally | |
| Displacement | 7000.6 cc | 427.2 cu in. |
| Transmission Type | PowerShift | |
| Number of Forward Gears | 3 | |
| Number of Reverse Gears | 3 | |
| Max Speed Forward | 9.3 km/h | 5.8 mph |
| Max Speed Reverse | 11.4 km/h | 7.1 mph |
| Ground Pressure | 0.9 bar | 13.3 psi |
| Fuel Capacity | 238.1 l | 62.9 gal |
| Cab Height | 271.3 cm | 106.8 in. |
| Width Over Track | 198.1 cm | 78.0 in. |
| Length Overall | 387.1 cm | 152.4 in. |
| Length without Blade | 320.0 cm | 126.0 in. |
| Length of Track on Ground | 185.9 cm | 73.2 in. |
| Track Gauge | 152.4 cm | 60.0 in. |
| Ground Clearance | 36.6 cm | 14.4 in. |
| Ground Contact Area | 30989.6 cm³ | 1891.1 cu in. |
| No of Track Rollers Per Side | 5 | |
| Shoe Size | 33.0 cm | 13 in. |
| Weight (Operating) | 8820.0 kg | 19444.8 lbs |
Source: heavyequipments.net archive (imported 2026-10). Values may vary by variant and production year; seller claims are shown separately on the listing page.
